PRINCIPLE

PICOCARE450 is the Nd:YAG pico second laser system to treat tattoo colors & pigmented lesions. In terms of speed & comfort, its performance is Superior to any other device in the market.

PROCEDURE

It’s effective and safe in treating various pigments as well as refractory pigments because Picocare minimizes damage to skin to remove pigment by precisely aiming the target spot.

Laser Radiation

Collapsed

Collapsed

Pigments Lesion Removal

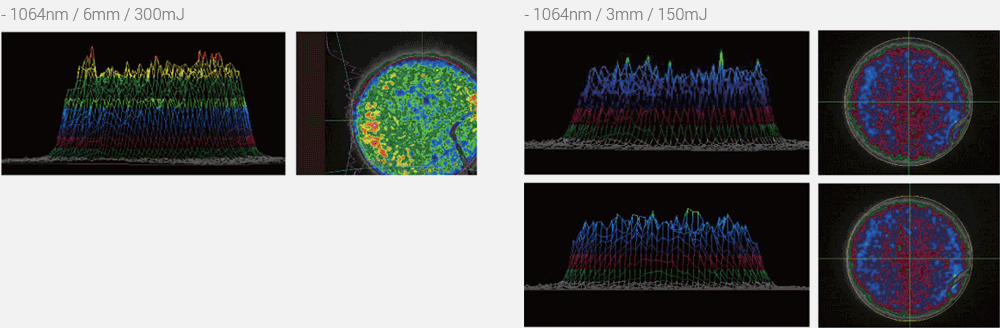

BEAM PROFILE

Optimal beam quality & top hat model

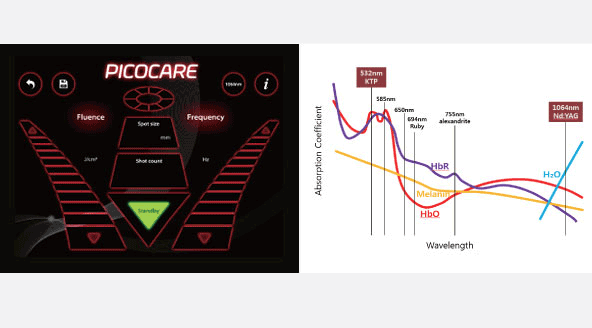

UI

Easy Operation by user interface

FEATURES

Beyond Nano, Experience Real PICO

PICOCARE 450 breaks all colors of tattoos and pigments into tiny particles by higher peak power of shorter pulse duration

Best solution for tattoo removal

PICOCARE450 has more photomechanical effect with less thermal effect on the skin,
Bringing better results with almost no side effects in tattoo removal and pigmentation treatment

HEXA MLA handpiece, replacing subcision

HEXA MLA(Micro Lens Array) handpiece is the fractional system with high energy density in the center of each dots.
PICOCARE450 with HEXA MLA handpiece can replace aggressive scar treatments such as subcision : scar tissues in the deep dermis can be destroyed without severe pain and the depressed scar is noticeably
lifted as a good result

INDICATION

Epidermal Lesions

Freckles, Melasma, Café au Lai
Age Spot (Senile Lentigos), Solar Lentigos (Sun spots)
Seborrheic Keratosis

Dermal Pigment Lesions

Various Color Tattoo
Nevus of Ota
ABNOM (Acquired Bilateral Nevus of Ota-like Macular)
Freckles
PIH
Becker’s Nevus

HEXA MLA

Acne Scar(Box, Ice pick, Rolling, Hypertrophic)
Skin Rejuvenation

SYSTEM & ACC

Zoom H/P

Fractional H/P

Optional H/P

Collimation
Handpiece(7mm)

MLA Handpiece

  SPECIFICATIONS

System Type

Nd:YAG

Wavelength

1064nm, 532nm, 595nm, 660nm

Output

600mJ(1064nm), 300mJ(532nm)

Pulse Duration

450ps

Peak Power

1.33GW(1064nm), 0.8GW(532nm)

Spot Size

Zoom H/P : 2 to 10mm
HEXA MLA H/P : 3 to 5mm, 6 to 10mm
DYE H/P : 3mm
Collimation H/P : 7mm

Repetition Rate

Single, Up to 10Hz

Handpiece

HEXA MLA H/P
DYE H/P
Collimation H/P

Dimensions

450(W) x 940(D) x 908(H)mm

Weight

90kg
